Altera DE2 - Development and Education Board - US$495
|
|
|
The purpose of the Altera DE2 Development and Education board is to provide the ideal vehicle for advanced design prototyping in the multimedia, storage, and networking.
It uses the state-of-the-art technology in both hardware and CAD tools to expose designers to a wide range of topics. The board offers a rich set of features that make it suitable for use in a laboratory environment for university and college courses, for a variety of design projects, as well as for the development of sophisticated digital systems. Altera provides a suite of supporting materials for the DE2 board, including tutorials, "ready-to-teach" laboratory exercises, and illustrative demonstrations.
|
| |
|
|
|
Altera DE2
Links to Universities using DE2 at classes
Links to DE2 Demonstration (Source: YouTube)
Features

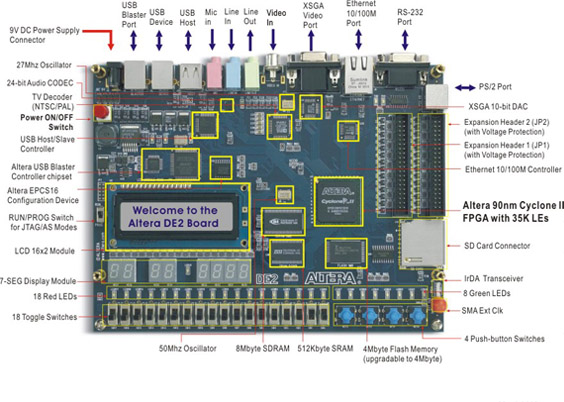

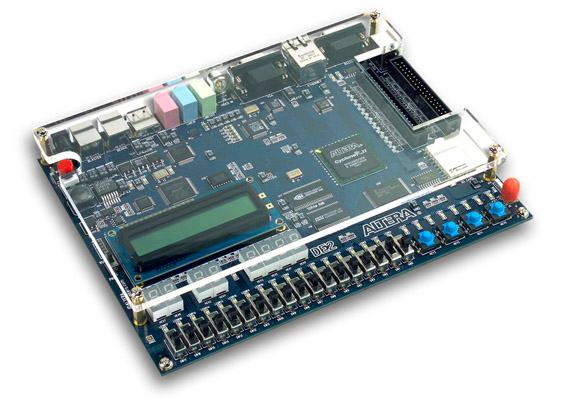

DE2 board provides users many features to enable various multimedia project development. Component selection was made according to the most popular design in volume production multimedia products such as DVD, VCD, and MP3 players. The DE2 platform allows users to quickly understand all the insight tricks to design real multimedia projects for industry.
 Altera Cyclone II 2C35 FPGA with 35000 LEs- Altera Serial Configuration deivices (EPCS16) for Cyclone II 2C35
- USB Blaster built in on board for programming and user API controlling
- JTAG Mode and AS Mode are supported
- 8Mbyte (1M x 4 x 16) SDRAM
- 512K byte(256K X16) SRAM
- 4Mbyte Flash Memory (upgradeable to 4Mbyte)
- SD Card Socket
- 4 Push-button switches
- 18 DPDT switches
- 9 Green User LEDs
- 18 Red User LEDs
- 16 x 2 LCD Module
- 50MHz Oscillator and 27MHz Oscillator for external clock sources
- 24-bit CD-Quality Audio CODEC with line-in, line-out, and microphone-in jacks
- VGA DAC (10-bit high-speed triple DACs) with VGA out connector
- TV Decoder (NTSC/PAL) and TV in connector
- 10/100 Ethernet Controller with socket.
- USB Host/Slave Controller with USB type A and type B connectors.
- RS-232 Transceiver and 9-pin connector
- PS/2 mouse/keyboard connector
- IrDA transceiver
- Two 40-pin Expansion Headers with diode protection
- DE2 Lab CD-ROM which contains many examples with source code to exercise the boards, including: SDRAM and Flash Controller, CD-Quality Music Player, VGA and TV Labs, SD Card reader, RS-232/PS-2 Communication Labs, NIOSII, and Control Panel API
- Size：153*203 mm
Download
Document
| Title | Update | Download |
|---|
Getting Started User Manual
Version: 1.4 |
2006-12-01 |
 |
| DE2 Web Server Application Note |
2006-05-08 |
|
| DE2 Board Introduction |
2006-02-15 |
|
| Product Spec. (English) |
2006-02-15 |
|
| DE2 Pin Table |
2006-02-15 |
|
Project
| Title | Update | Download |
|---|
DE2 TV Source Code (For DE2 boards with Serial Number starting with Digit 0.)
Version: 2.0 |
2006-11-29 |
 |
DE2 TV Source Code (For DE2 boards with Serial Number starting with Digit 1.)
Version: 2.0 |
2006-11-29 |
|
| DE2 Music Synthesizer Source Code |
2006-11-16 |
|
DE2 Web Server Source Code and Drivers
Version: for Quartus II 6.0 - Require Nios II 6.0 Full Edition installed |
2006-11-06 |
|
DE2 Web Server Source Code and Drivers
Version: for Quartus II 5.1 |
2006-11-06 |
|

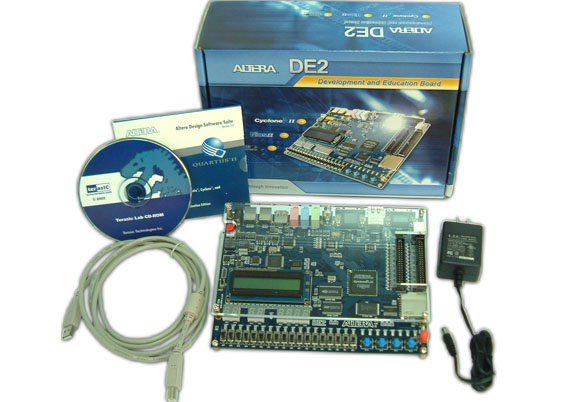

DE2 Kit includes the following items:
- Altera DE2 Board
- Altera DE2 CD-ROM - Version 1.5
- Altera Quartus II DVD with Nios II - Version 7.0
(We provide Quartus II Web Edition software. To learn more about the details please visit Quartus II Software—Subscription Edition and Web Edition Comparison
)
- 1 Adapter DC 9V/1.3A (US wall plug)
- 1 USB Cable
- 6 Silicon Footstands
- 2 Cables (black- and red-colored)
- 2 PIN Headers, 1P1N
Accessories (optional)
Order
 |
- Altera Cyclone II 2C35 FPGA with 35000 LEs
- Altera Serial Configuration devices (EPCS16) for Cyclone II 2C35
- USB Blaster built in on board for programming and user API controlling
- 8Mbyte SDRAM, 4Mbyte Flash Memory, 512K SRAM
- SD Card Socket, RS-232, Ethernet, 10-bit VGA, 24-bit Audio CODEC
- TV Decoder (NTSC/PAL), IrDA, USB (Host+Slave)
- Many examples with source code (including TV Box, SD Music Player)
|
* This product is out of stock now. Orders can be placed but the shipment will be arranged at a later stage. Will update the shipping date soon!
Customers who bought this product also bought:
Photo Gallery - Select a miniature image to view in main window
BBS / Q&A
BBS Forum
: http://www.terasic.com.tw/cgi-bin/page/forum.pl?Language=English
| Q: I am a student, how can I order a board using the special educational price($269)?
|
|
A: You can follow our online ordering system and click on "Agreement" in the University Price column. Please follow the instructions carefully and then send us the copy of your student ID card either by fax at +886-3-550-2860
or email with the scanned file to sales@terasic.com
.
Thank you very much!
|
 |
